3 Chutes Color Sorter Grain Seeds Color Sorting Machine with Spare Parts

products detail
Product Parameters

Features of Seeds Color Sorter Machine:

Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.
High level AI self-learning function，one-key automation,user friendly interface,easy operation.
Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
High and specification ensures high stability with high sorting accuracy small carry over and low energy.
Clound computing,massive dated analysis,multi-camera identification,high accuracy.
Ampere Altra processor from USA,Samsung from Korea,Toshiba Camera Core From Japan,Top Specification.
High-end machines can realize remote control, multi-screen interaction and non-contact control.

Model and Specification of Seeds Colour Sorter Machine:

Model	Q1	Q2	Q3	Q5	Q7	Q8	Q10
Executing Unit	64	128	192	320	448	512	640
Throughout(t/h)	0.5~1	1~2	1~3	2~5	4~6	5~7	6~8
Voltage(V)	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ
Power(kW)	1	1.4	1.8	2.6	3.5	4	5
Weight(kg)	400	550	800	1050	1300	1480	1880
Dimension(LWH/mm)	92017002010	123017002010	154017002010	216017002010	278017002010	309017002010	216029802010
Sorting accuracy(%)	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99
Rejection rate	≥11:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1
Air consumption(L/min)	400~800	600~1000	800~1600	1300~2200	1800~3600	2200~4000	2400~4500
Notes	We can product models from 1-8chutes,and models with 10,12 and 14 chutes.

Note:Subject to different impurities of raw materials,parameters listed in above table will change to some extent

Sorting Examples of Multi Grain Seeds Color Sorting Machine：

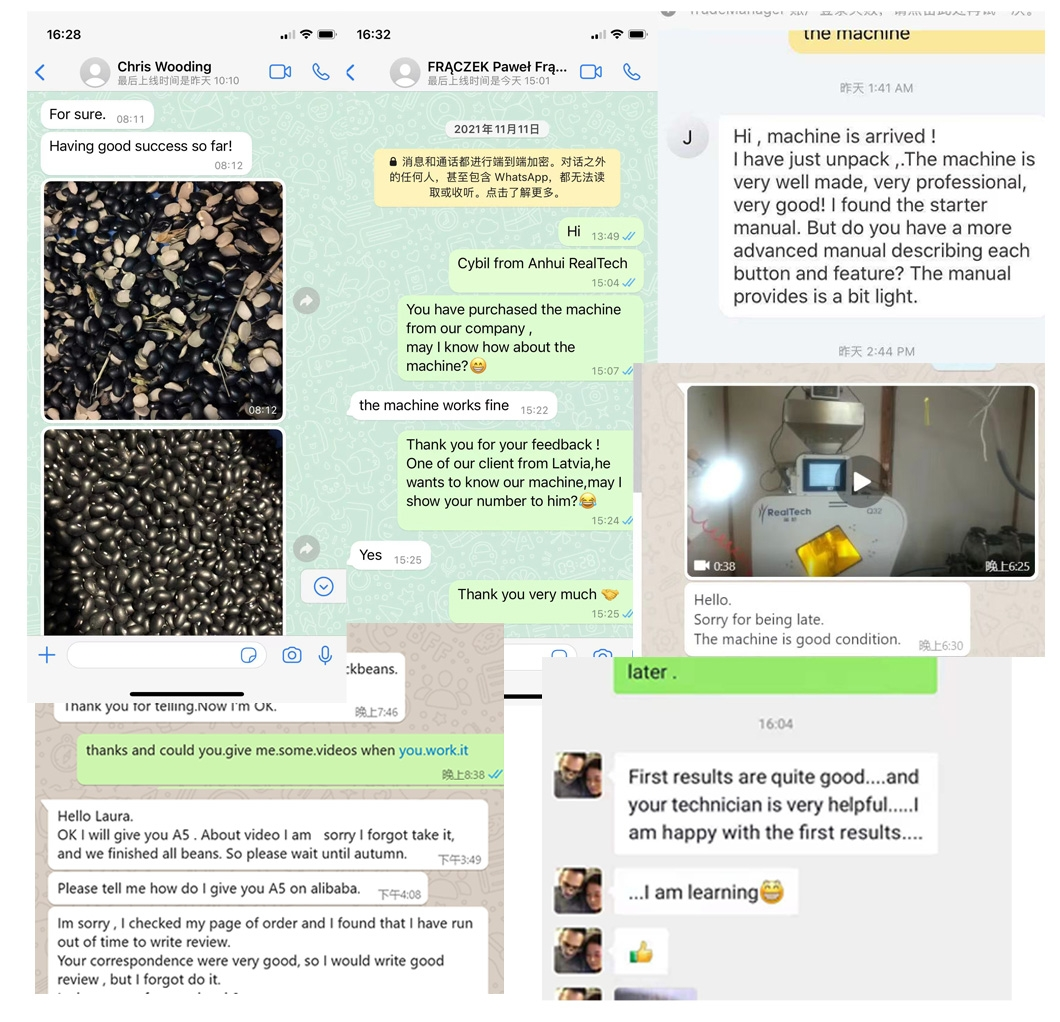

The Good Qulity and Sorting Results Received the Feedback from Customer:

Multifunction Seeds Color Sorter Machine,How to Sort Seeds:

Features of Seeds Color Sorter Machine:

Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.
High level AI self-learning function，one-key automation,user friendly interface,easy operation.
Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
High and specification ensures high stability with high sorting accuracy small carry over and low energy.
Clound computing,massive dated analysis,multi-camera identification,high accuracy.
Ampere Altra processor from USA,Samsung from Korea,Toshiba Camera Core From Japan,Top Specification.
High-end machines can realize remote control, multi-screen interaction and non-contact control.

Model and Specification of Seeds Colour Sorter Machine:

Model	Q1	Q2	Q3	Q5	Q7	Q8	Q10
Executing Unit	64	128	192	320	448	512	640
Throughout(t/h)	0.5~1	1~2	1~3	2~5	4~6	5~7	6~8
Voltage(V)	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ
Power(kW)	1	1.4	1.8	2.6	3.5	4	5
Weight(kg)	400	550	800	1050	1300	1480	1880
Dimension(LWH/mm)	92017002010	123017002010	154017002010	216017002010	278017002010	309017002010	216029802010
Sorting accuracy(%)	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99
Rejection rate	≥11:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1
Air consumption(L/min)	400~800	600~1000	800~1600	1300~2200	1800~3600	2200~4000	2400~4500
Notes	We can product models from 1-8chutes,and models with 10,12 and 14 chutes.

Model：

Q3

Brand：

RealTech

Executing Unit：

192

Throughout：

1.0-3.0t/h

Voltage(V)：

110/220V-50/60HZ

Power(kW)：

1.8

Weight(kg)：

800

Dimension（mm）：

1540*1700*2010

Sorting accuracy(%)：

≥99.99

Rejection rate：

11:1~30:1

Air consumption(L/min)：

800-1600
