Coffee Bean Color Sorter Machine Optical Kidney/Lentil/Soybean Color Sorting Manufacturer

products detail
Product Parameters

Features of Beans Color Sorter Machine:

Latest UHD imaging and analysis technology,high-speed processing,accurate identification.
High level AI self-learning function，one-key automation,user friendly interface,easy operation.
Multi-function,multi-purpose,widely used for rice,grain ,beans,plastic,chinese herbals etc.
Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
High and specification ensures high stability with high sorting accuracy small carry over and low energy.
Clound computing,massive dated analysis,multi-camera identification,high accuracy.
Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.

Model and Specification:

Model	Q1	Q2	Q3	Q5	Q7	Q8	Q10
Executing Unit	64	128	192	320	448	512	640
Throughout(t/h)	0.5~1	1~2	1~3	2~5	4~6	5~7	6~8
Voltage(V)	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ
Power(kW)	1	1.4	1.8	2.6	3.5	4	5
Weight(kg)	400	550	800	1050	1300	1480	1880
Dimension(LWH/mm)	92017002010	123017002010	154017002010	216017002010	2780170020510	309017002010	216029802010
Sorting accuracy(%)	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99
Rejection rate	≥11:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1
Air consumption(L/min)	400~800	600~1000	800~1600	1300~2200	1800~3600	2200~4000	2400~4500
Notes	We can product models from 1-8chutes,and models with 10,12 and 14 chutes.

Note:Subject to different impurities of raw materials,parameters listed in above table will change to some extent

Sorting Samples of Bean Color Sorter Machine Processing Equipment：

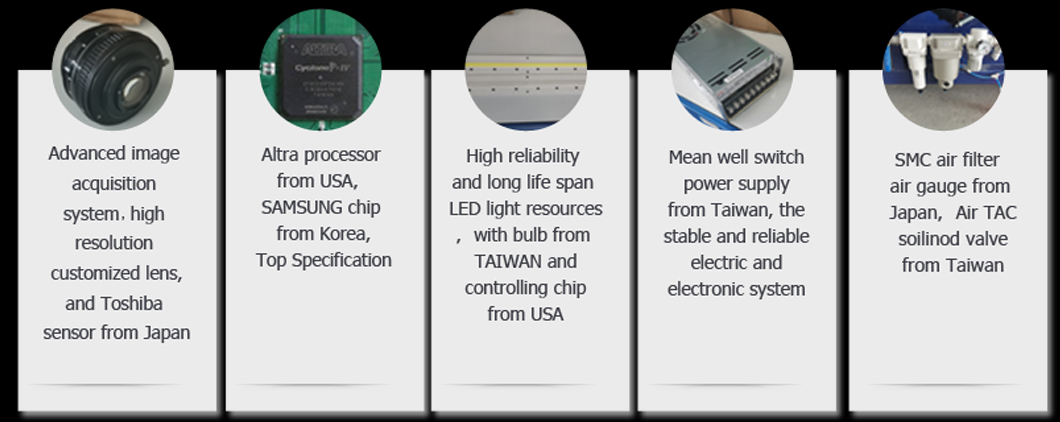

High-end Specification and High Efficiency Spare Parts:

Coffee Bean Color Sorter Machine,How to Sort Coffee:

Features of Beans Color Sorter Machine:

Latest UHD imaging and analysis technology,high-speed processing,accurate identification.
High level AI self-learning function，one-key automation,user friendly interface,easy operation.
Multi-function,multi-purpose,widely used for rice,grain ,beans,plastic,chinese herbals etc.
Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
High and specification ensures high stability with high sorting accuracy small carry over and low energy.
Clound computing,massive dated analysis,multi-camera identification,high accuracy.
Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.

Model and Specification:

Model	Q1	Q2	Q3	Q5	Q7	Q8	Q10
Executing Unit	64	128	192	320	448	512	640
Throughout(t/h)	0.5~1	1~2	1~3	2~5	4~6	5~7	6~8
Voltage(V)	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ	110/220V-50/60HZ
Power(kW)	1	1.4	1.8	2.6	3.5	4	5
Weight(kg)	400	550	800	1050	1300	1480	1880
Dimension(LWH/mm)	92017002010	123017002010	154017002010	216017002010	2780170020510	309017002010	216029802010
Sorting accuracy(%)	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99	≥99.99
Rejection rate	≥11:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1	11:1~30:1
Air consumption(L/min)	400~800	600~1000	800~1600	1300~2200	1800~3600	2200~4000	2400~4500
Notes	We can product models from 1-8chutes,and models with 10,12 and 14 chutes.

Model：

Q4

Brand：

RealTech

Executing Unit：

256

Throughout：

2.0~4.0t/h

Voltage(V)：

110/220V-50/60HZ

Power(kW)：

2.2

Weight(kg)：

950

Dimension（mm）：

1850*1700*2010

Sorting accuracy(%)：

≥99.99

Rejection rate：

11:1~30:1

Air consumption(L/min)：

1000-1800
