Features of peanut color sorter:
1, the introduction of LED Air Cooling
Solve the LED light source due to prolonged use of high temperature, short life and other issues, ensuring constant LED light source durable.
2, the unique suction ventilation system
You can remove dust and other raw materials in the ethereal substance, to ensure that the lens identification, higher color sorting accuracy.
3, the image acquisition system
Full-color high-definition CCD camera image acquisition system, the material (RGB) red, green, and blue color information to obtain a comprehensive, small depth to identify and elaborate common color sorter can not choose other impurities.
4, the operating system
Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.
5, the image processing system
International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide "color selection + shape selected" function for different materials, a variety of modes set free.
| Model | MT1P | MT2P | MT3P | MT4P | MT5P | MT6P | MT7P |
| Executing Unit | 42 | 84 | 126 | 168 | 210 | 252 | 294 |
| Throughout(t/h) | 0.5~1.4 | 0.5~2.5 | 1.5~5 | 2~6 | 3~8 | 4~10 | 5~12 |
| Voltage(V) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) |
| Power(kW) | 1 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 |
| Weight(kg) | 210 | 350 | 600 | 750 | 880 | 1050 | 1150 |
| Dimension(L*W*H/mm) | 960*1630*2050 | 1340*1630*2050 | 1610*1630*2050 | 1965*1630*2050 | 2225*1630*2050 | 2595*1630*2050 | 2980*1630*2050 |
| Sorting accuracy(%) | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
| Rejection rate | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 |
| Air consumption(L/min) | 400~800 | 600~1000 | 800~1600 | 1000~1800 | 1300~2200 | 1500~3000 | 1800~3600 |
Note:Subject to different impurities of raw materials,parameters listed in above table will change to some extent

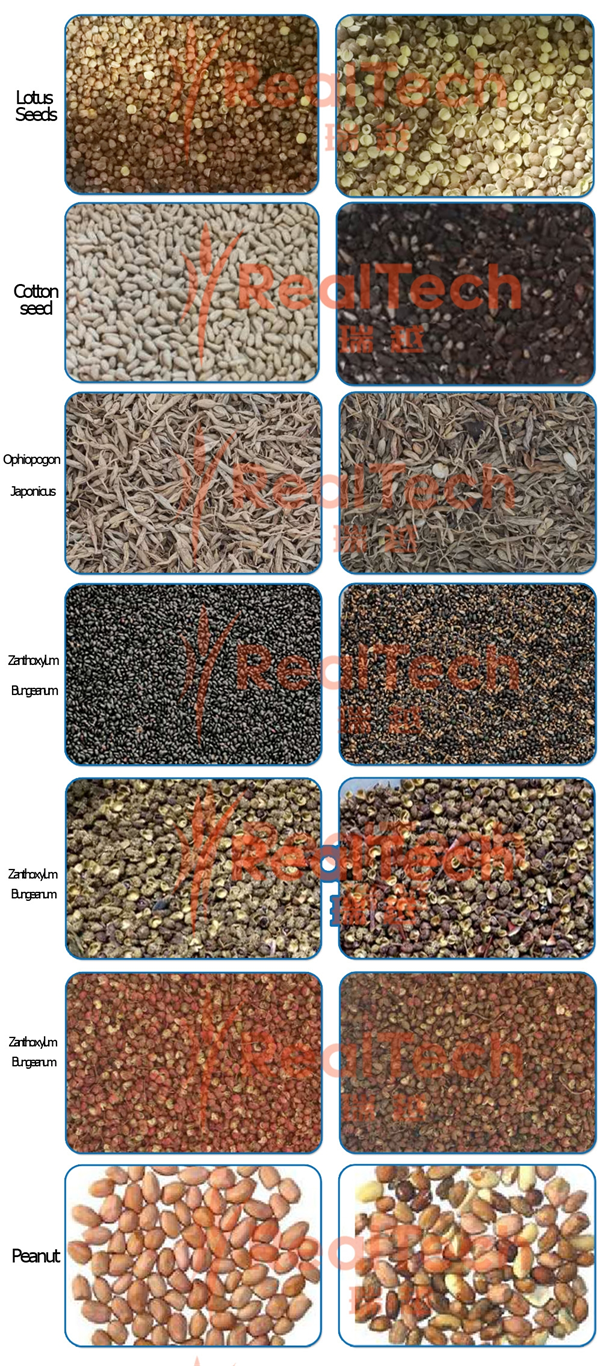

Sorting Examples:
Technology Advantage:
Features of peanut color sorter:
1, the introduction of LED Air Cooling
Solve the LED light source due to prolonged use of high temperature, short life and other issues, ensuring constant LED light source durable.
2, the unique suction ventilation system
You can remove dust and other raw materials in the ethereal substance, to ensure that the lens identification, higher color sorting accuracy.
3, the image acquisition system
Full-color high-definition CCD camera image acquisition system, the material (RGB) red, green, and blue color information to obtain a comprehensive, small depth to identify and elaborate common color sorter can not choose other impurities.
4, the operating system
Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.
5, the image processing system
International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide "color selection + shape selected" function for different materials, a variety of modes set free.
| Model | MT1P | MT2P | MT3P | MT4P | MT5P | MT6P | MT7P |
| Executing Unit | 42 | 84 | 126 | 168 | 210 | 252 | 294 |
| Throughout(t/h) | 0.5~1.4 | 0.5~2.5 | 1.5~5 | 2~6 | 3~8 | 4~10 | 5~12 |
| Voltage(V) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) |
| Power(kW) | 1 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 |
| Weight(kg) | 210 | 350 | 600 | 750 | 880 | 1050 | 1150 |
| Dimension(L*W*H/mm) | 960*1630*2050 | 1340*1630*2050 | 1610*1630*2050 | 1965*1630*2050 | 2225*1630*2050 | 2595*1630*2050 | 2980*1630*2050 |
| Sorting accuracy(%) | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
| Rejection rate | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 |
| Air consumption(L/min) | 400~800 | 600~1000 | 800~1600 | 1000~1800 | 1300~2200 | 1500~3000 | 1800~3600 |
Note:Subject to different impurities of raw materials,parameters listed in above table will change to some extent
Sorting Examples:
Technology Advantage:
