Plastic Color Sorter Flakes

  • products detail
  • Product Parameters

  • Features of  Plastic Color Sorter Machine:

    • Clound computing,massive dated analysis,multi-camera identification,high accuracy.

    • Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.

    • Multi-function,multi-purpose,widely used for all kinds of rice,grain,nut,plastic etc.

    • Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.

    • High and specification ensures high stability with high sorting accuracy small carry over and low energy.

    • Ampere Altra processor from USA,Samsung from Korea,Toshiba Camera Core From Japan,Top Specification.

    • Specially good at identifying and sorting light yellow,tiny spot,micro color difference etc.

    • High-end machines can realize remote control, multi-screen interaction and non-contact control.


    Model and Specification of Plastic Color Sorting Machine:

    ModelQ1Q2Q3Q5Q7Q8Q10
    Executing Unit64128192320448512640
    Throughout(t/h)0.5~11~21~32~54~65~76~8
    Voltage(V)110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ
    Power(kW)11.41.82.63.545
    Weight(kg)4005508001050130014801880
    Dimension(L*W*H/mm)920*1700*20101230*1700*20101540*1700*20102160*1700*20102780*1700*205103090*1700*20102160*2980*2010
    Sorting accuracy(%)≥99.99≥99.99≥99.99≥99.99≥99.99≥99.99≥99.99
    Rejection rate≥11:111:1~30:111:1~30:111:1~30:111:1~30:111:1~30:111:1~30:1
    Air consumption(L/min)400~800600~1000800~16001300~22001800~36002200~40002400~4500
    NotesWe can product models from 1-8chutes,and models with 10,12 and 14 chutes.

    Note:Subject to different impurities of raw materials,parameters listed in above table will change to some extent

    Sorting Examples of ABS/PET/PP/PVC Plastic Colour Sorter Machine:

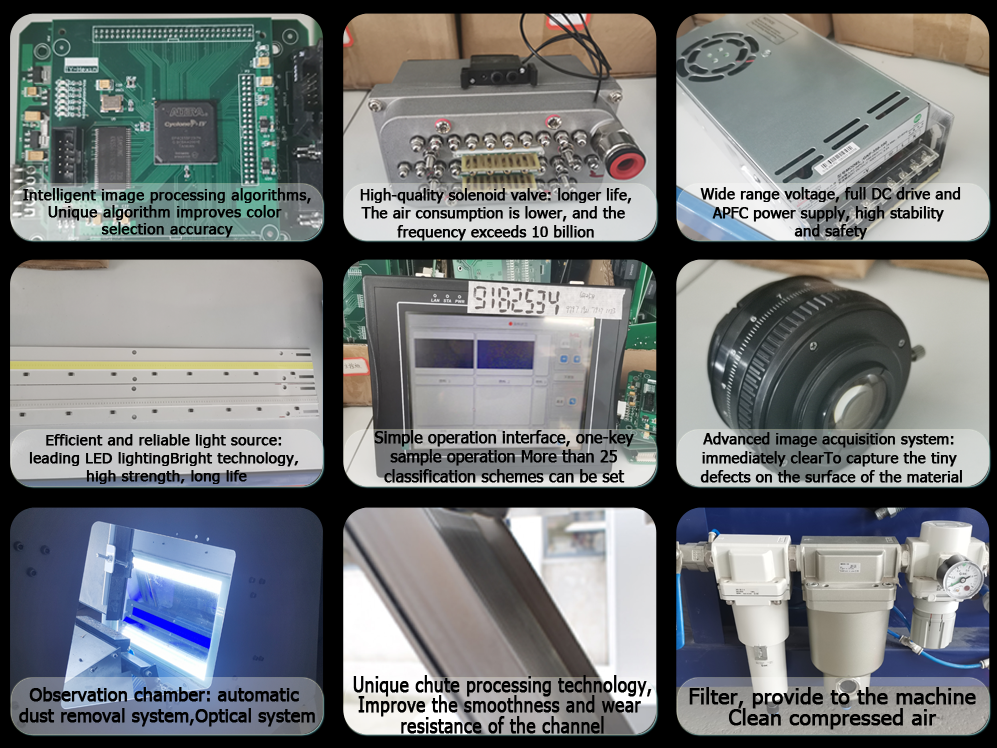

    High-end Specification and High Efficiency of Plastic Color Sorting Sapre Parts:


    Plastic Color Sorter Separator Machine,How to Sort Plastic:



    Features of  Plastic Color Sorter Machine:

    • Clound computing,massive dated analysis,multi-camera identification,high accuracy.

    • Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.

    • Multi-function,multi-purpose,widely used for all kinds of rice,grain,nut,plastic etc.

    • Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.

    • High and specification ensures high stability with high sorting accuracy small carry over and low energy.

    • Ampere Altra processor from USA,Samsung from Korea,Toshiba Camera Core From Japan,Top Specification.

    • Specially good at identifying and sorting light yellow,tiny spot,micro color difference etc.

    • High-end machines can realize remote control, multi-screen interaction and non-contact control.


    Model and Specification of Plastic Color Sorting Machine:

    ModelQ1Q2Q3Q5Q7Q8Q10
    Executing Unit64128192320448512640
    Throughout(t/h)0.5~11~21~32~54~65~76~8
    Voltage(V)110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ110/220V-50/60HZ
    Power(kW)11.41.82.63.545
    Weight(kg)4005508001050130014801880
    Dimension(L*W*H/mm)920*1700*20101230*1700*20101540*1700*20102160*1700*20102780*1700*205103090*1700*20102160*2980*2010
    Sorting accuracy(%)≥99.99≥99.99≥99.99≥99.99≥99.99≥99.99≥99.99
    Rejection rate≥11:111:1~30:111:1~30:111:1~30:111:1~30:111:1~30:111:1~30:1
    Air consumption(L/min)400~800600~1000800~16001300~22001800~36002200~40002400~4500
    NotesWe can product models from 1-8chutes,and models with 10,12 and 14 chutes.

    Note:Subject to different impurities of raw materials,parameters listed in above table will change to some extent

    Sorting Examples of ABS/PET/PP/PVC Plastic Colour Sorter Machine:


    High-end Specification and High Efficiency of Plastic Color Sorting Sapre Parts:


    Plastic Color Sorter Separator Machine,How to Sort Plastic:



  • Model：
    Q5
    Brand：
    RealTech
    Executing Unit：
    320
    Throughout：
    2.0-5.0t/h
    Voltage(V)：
    110/220V-50/60HZ
    Power(kW)：
    2.6
    Weight(kg)：
    1050
    Dimension（mm）：
    2160*1700*2010
    Sorting accuracy(%)：
    ≥99.99
    Rejection rate：
    11:1~30:1
    Air consumption(L/min)：
    1300-2200
