Features of Plastic color sorter:
Special Chute Design:
vacuum surface plating .hard to wear and corrosion resistance
High-quality distinction system:
Super High Definition full color 5400+Pixels CCD image sensor distinguishing 0.01mm area
Artificial Intelligence Technology:
Image capturing & processing with AI tech, setting backup, mode backup & transfer available
Intelligent Operation surface:
12 inch interface with user-friendly operation system.
Adjustable light source tech :
advanced & adjustable LED light source ensure the accurate obtaining. Special design make it long term using, low energy consumption and perfect performance, no need additional radiator
Original imported Ejector:
much more stable , working more than 12 billion times, easy maintenance
Dust cleaning system:
Special design and dust absorption design with better surrounding for sorting.
| Model | Q1 | Q2 | Q3 | Q4 | Q5 | Q6 | Q7 |
| Executing Unit | 64 | 128 | 192 | 256 | 320 | 384 | 448 |
| Throughout(t/h) | 0.5~1.0 | 0.5~2.5 | 3.0~5.0 | 2.0~4.0 | 2.0~5.0 | 3.0~5.0 | 4.0~6.0 |
| Voltage(V) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) | 110~220V (50~60Hz) |
| Power(kW) | 1 | 1.5 | 1.8 | 2.2 | 2.6 | 2.8 | 3.5 |
| Weight(kg) | 400 | 550 | 800 | 950 | 1050 | 1150 | 1300 |
| Dimension(L*W*H/mm) | 920*1700*2010 | 1230*1700*2010 | 1540*1700*2010 | 1850*1700*2010 | 2160*1700*2010 | 2470*1700*2010 | 2780*1700*2010 |
| Sorting accuracy(%) | ≥99.9 | ≥99.9 | ≥99.9 | ≥99.9 | ≥99.9 | ≥99.9 | ≥99.9 |
| Rejection rate | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 |
| Air consumption(L/min) | 400~800 | 600~1000 | 800~1600 | 1000~1800 | 1300~2200 | 1500~3000 | 1800~3600 |
Note:Subject to different impurities of raw materials,parameters listed in above table will change to some extent
Technical advantages:

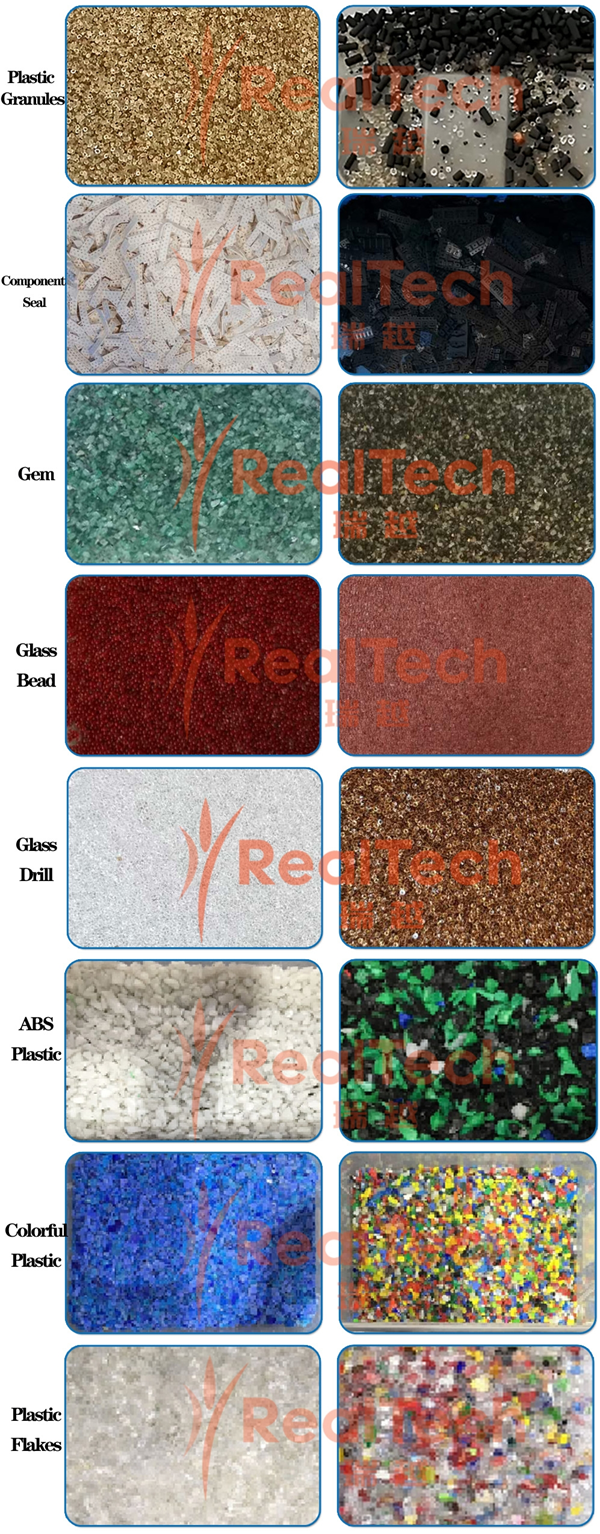

Sorting Examples：
